ROHS Black 4 X 1 1080P HDMI DP KVM Switch

Displayport KVM,4 x 1,Displayport KVM Switch

1.0 Technical parameters:

2.0 Features:

1. OS support-Windows, Linux, and Mac.

2. Switch model: via front panel push buttons,remote control and hot keys.

3. HDMI digital monitor support-fully compliant with HDMI 1.4 also HDCP compliant.

4. Superior video quality-supports 480i,480p,720p,1080p,3840x2160@30Hz.

5. Support widescreen resolutions.

6. Support Hot plug&play.

7. One USB or PS/2 console controls 2 HDMI-interface computers.

8. Auto Scan Mode for monitoring all computers and HDMI devices.

3.0 Packaging accessories:

1. HDMI KVM Switcher-------------------------------1 PCS

2. Remote control----------------------------------------1PCS

3. 5V DC Power Adaptor------------------------------1 PCS

4. User Manual------------------------------------------1 PCS

4.0 Panel Introduction:

Front panel

1. USB1-3 -----------------------------------------------USB HUB port

2. Microphone ---------------------------------------microphone port

3. Stereo -----------------------------------------------------Stereo port

4. ON/OFF ---------------------------------------Audio switch button

5. PC1---------------------------------------------------Input 1 indicator

6. PC2---------------------------------------------------Input 2 indicator

7. Select --------------------------------------------Input switch button

8. Power ------------------------------------------------Power indicator

9. ON/OFF ------------------------------------------------Power switch

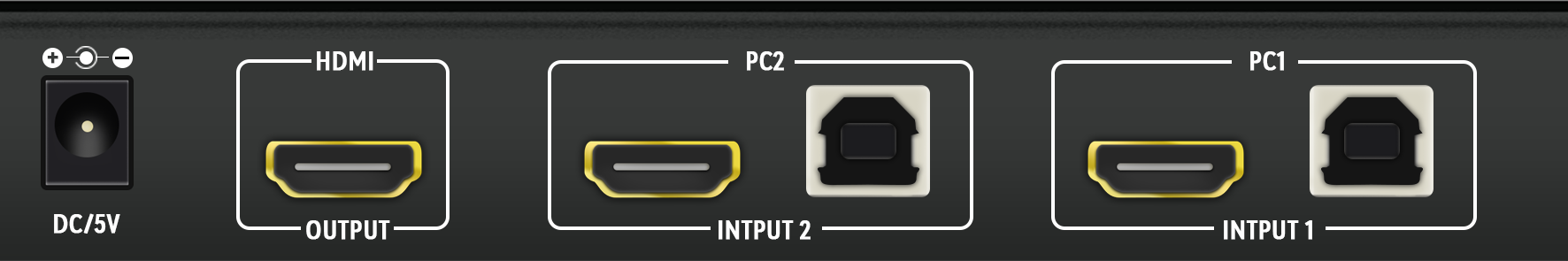

Rear panel

10. DC/5V -----------------------------------------------Power input port

11. HDMI Out -----------------------------------------HDMI Output port

12. HDMI/USB IN 2--------------------------------------PC2 Input port

13. HDMI/USB IN 1--------------------------------------PC1 Input port

5.0 Connection diagram:

1. Connect high definition display device such as HDTV to HDMI KVM

Switch's output port.

2. Connect keyborad and mouse to HDMI KVM Switch’s usb ports.

3. Connect Computer's HDMI and usb to HDMI KVM Switch's input ports.

4. Push botton.

Simply press the appropriate port selection switch on the front panel. After you press the switch, the select LED lighting indicate that the port is selected currently

5. Hotkey

Hot Key allows you to conveniently to access connected PCs directly from the keyboard, instead of having to manually select them by pressing port selection switches. To select a port with the hot key method, do the following:

1) [Scroll Lock] + [Scroll Lock]+ 1/2/3/4/5/6/7/8 +[Enter]

2) Auto Scan function: [Scroll Lock] + [Scroll Lock]+S+[Enter]

Explanation: With different brands of the input or output device, the length of the connecting cables will differ too.

6.0 Installation and Precautions:

To avoid electric shock , product damage and to protect your safety , please notice the following:

1. Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2. The equipment should not be placed under the sun , rain and damp or unventilated environment.

3. Liquid items should not be placed on the equipment.

4. Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6. Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
